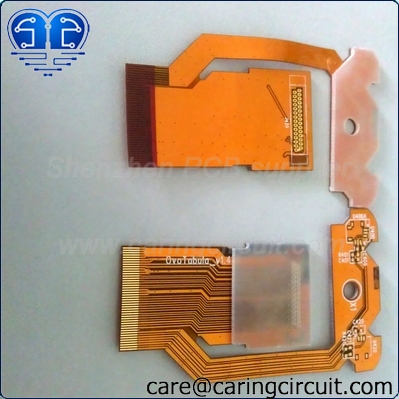

2L FPCB prototype
Leadtime : Standard 7 days no need FPCB quick turn

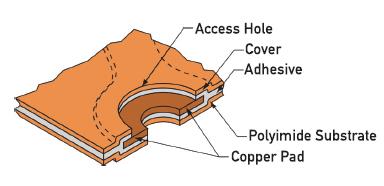

|Copper: 35μm double Layer roller copper + plating copper 10μm ~20μm.|
|Material: PI 25.4μm+ Adhesive 17μm|
|Soldermask: PI coverlay 25.4μm + Adhesive 17μm ( some area are too small which have to be printed soldermask)|
|Stiffener: 1pc 0.125mm PI stiffers+ 2pcs FR4 1.5mm stiffers + 3M9076 double faced adhesive tape manual pasted.|
|FPCB finished thickness: 0.23mm+/-0.03mm.|
|gold connector area with stiffers and over all thickness 0.3mm+/-0.03mm.|
|Delivery by pieces.|
USD 160 for 10pcs sample + USD 90 stencil ( 370*470mm ) + USD 30 DHL freight shipped to Germany.
|MP (EXW or FCA Shenzhen)||USD 0.952/pc + mould charges USD 700 ( needed only once. outline mould, overlayer mould, stiffers mould all included)+ E-test jig USD 200 ( needed only once)|

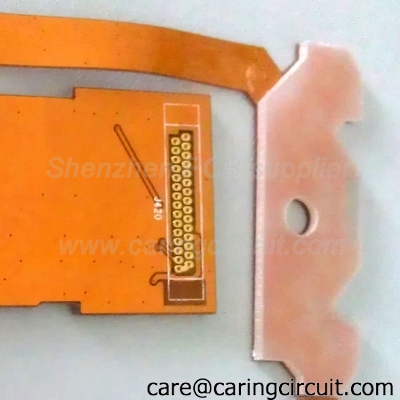

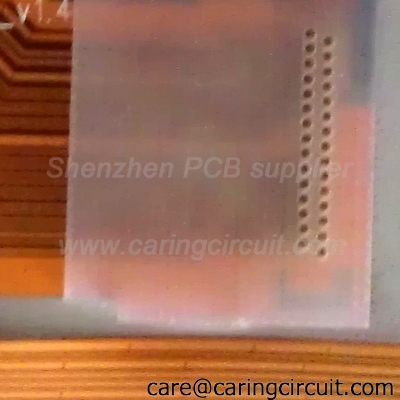

1. The small area printed with soldermask is the through holes area with FR4 stiffer. Because distance between holes are very small, it cannot to do with overlay, but since there is FR4 stiffer, it is hard enough, so soldermask is no problem at all at this area.

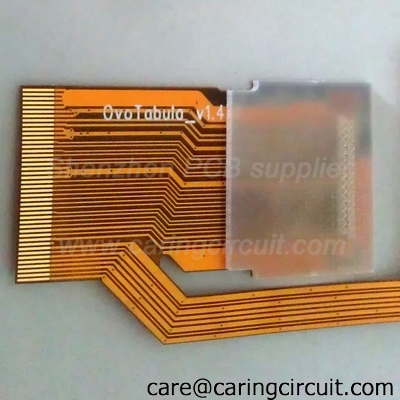

2. FR4 stiffener will pasted on the bottom and we will make the holes accordingly on FR4 stiffener to make sure customer could assemble. For gold connectors, the PI stiffer won't cover any though holes."
